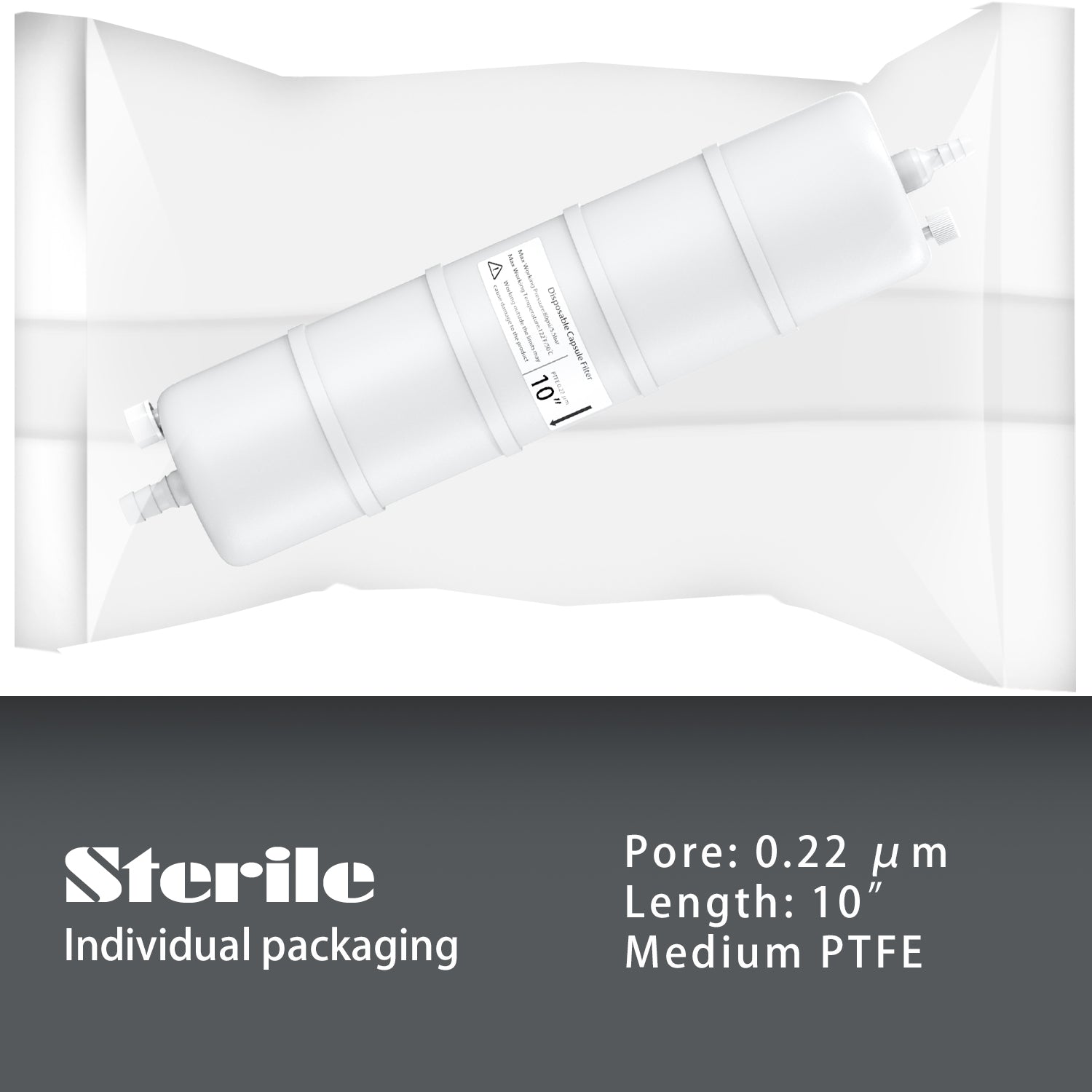

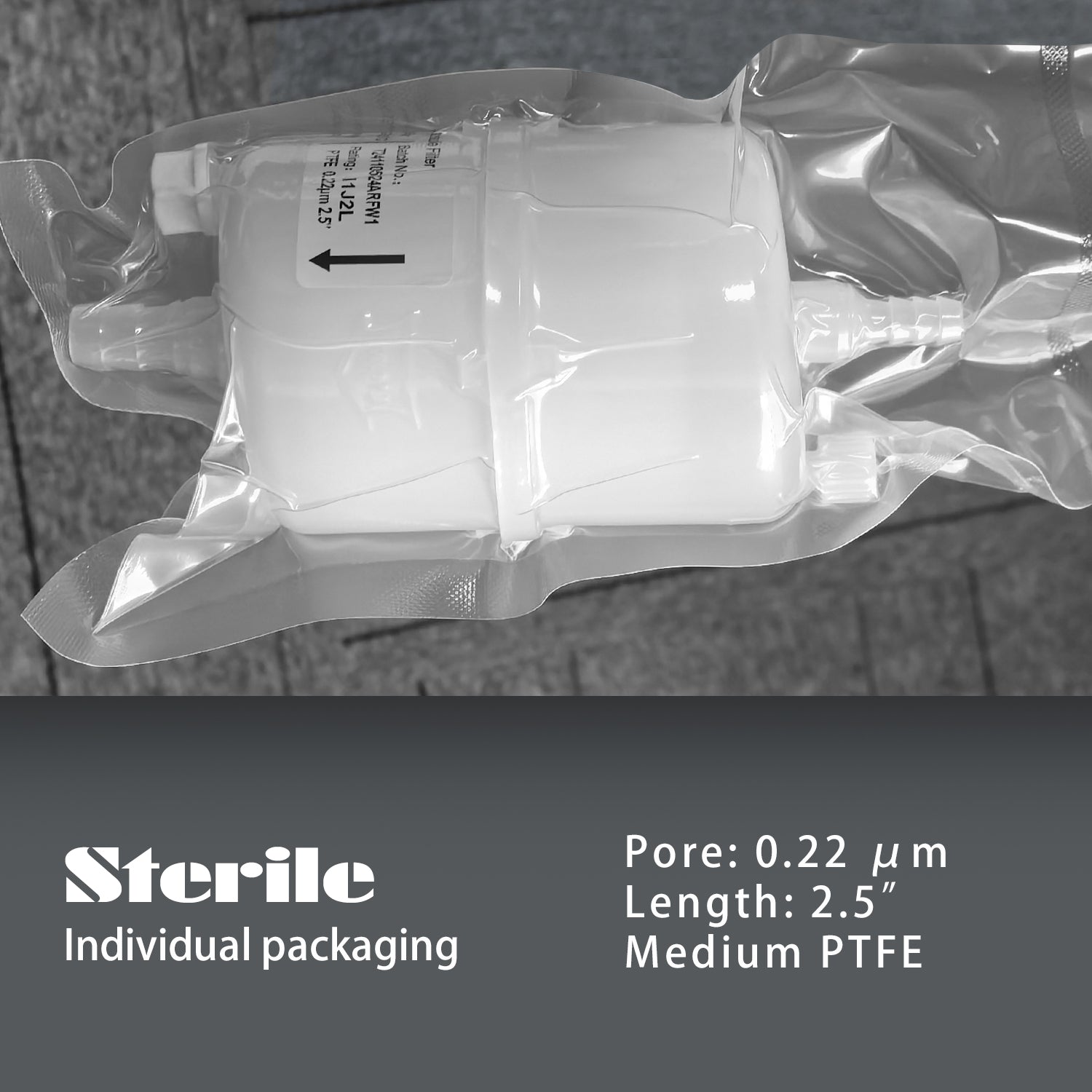

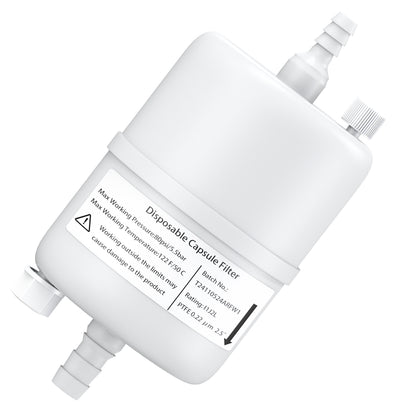

PTFE /PES Capsule Filters with Hose Barb for 1/4" to 3/8" Tube Sterile Filling Bell Filter Pore Size 0.22um Length 2.5" Individual Packaging,1/pk

Pore Size (um):0.22

 Effective Filter Area (cm²): 2.5"---1000 cm² , 5"---2000 cm²，7.5"---3000 cm² , 10"---4000 cm²

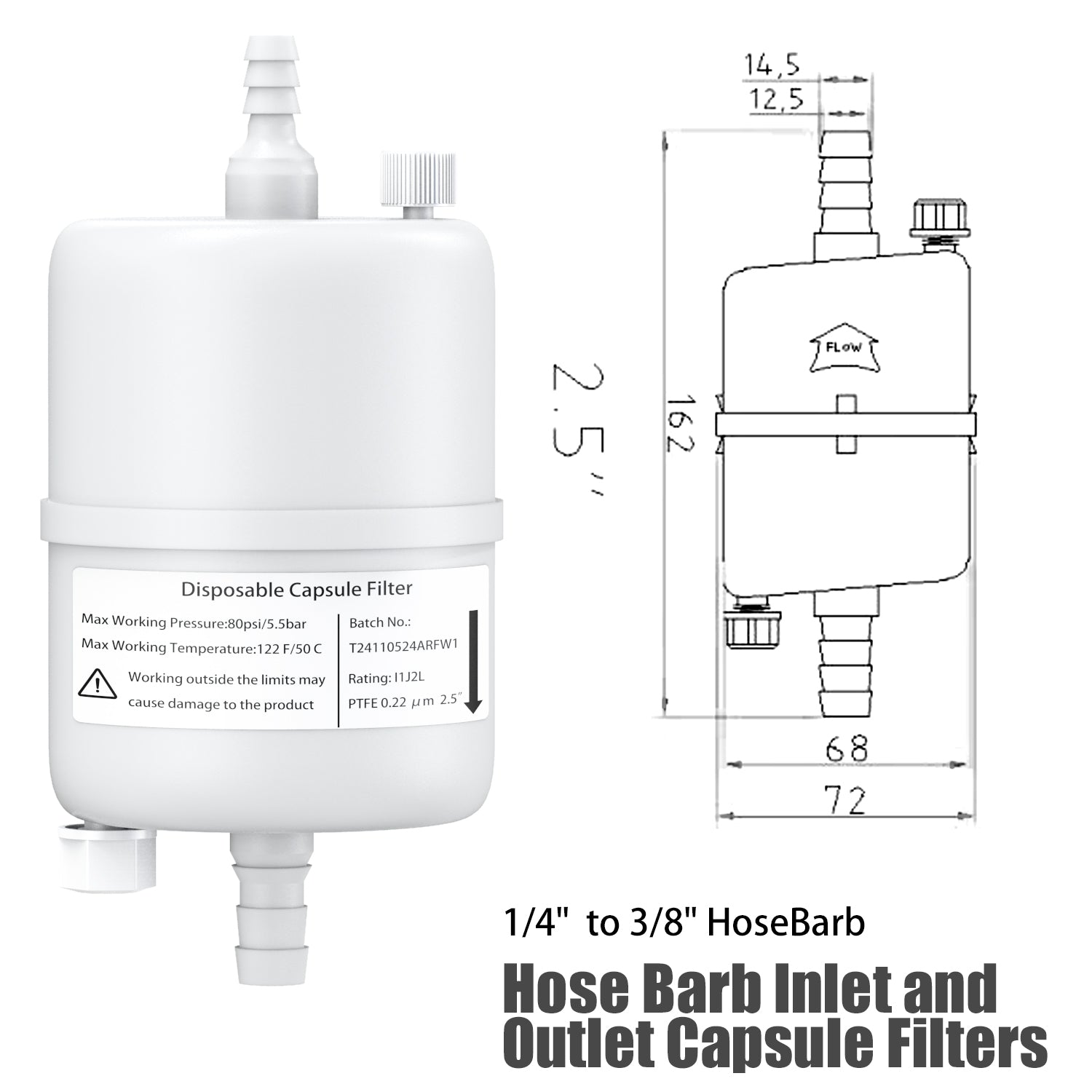

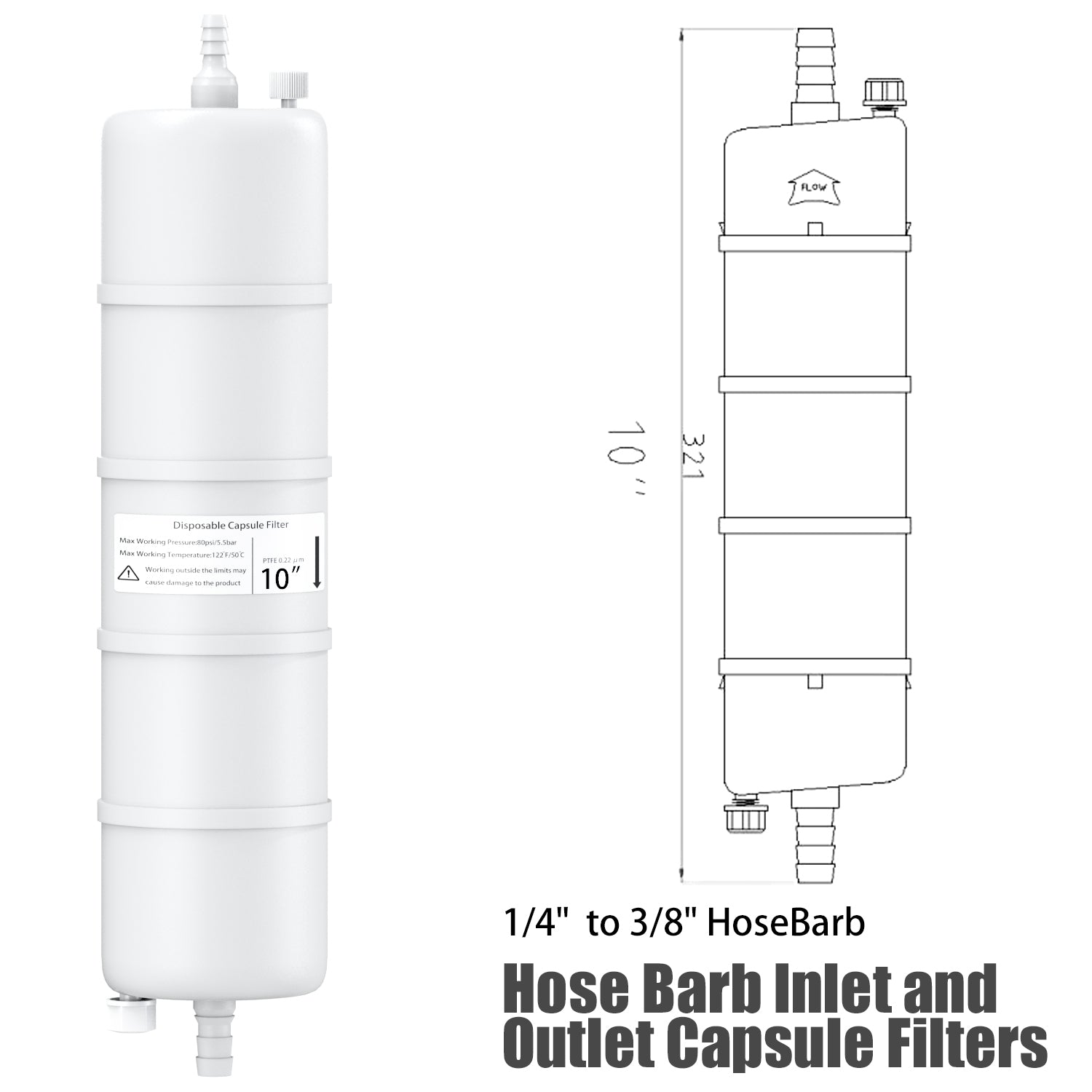

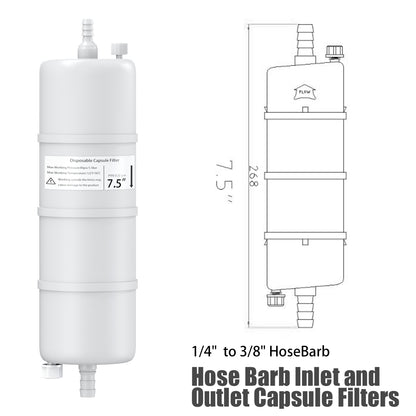

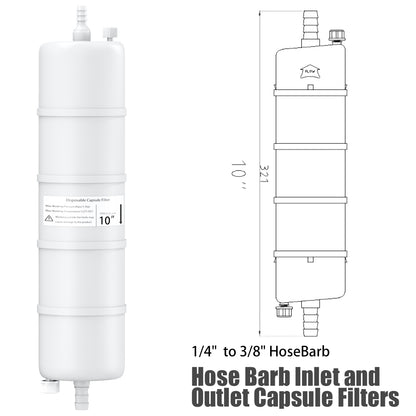

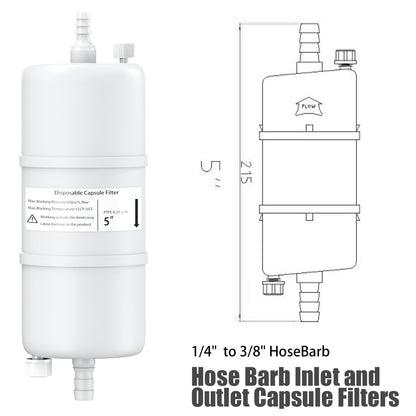

 Connections:With hose barb for 1/4" to 3/8" inlet and outlet tube

 Membrane Material:Hydrophobic polytetrafluoroethylene (PTFE) membranes for use with organic solvents and chemically solutions

 Applications:venting, filtration to remove particles from air/gas/liquid streams, filtration to ensure clean inert gases in vial filling lines, and isolation of exhaust

Max working pressure: 80 psi/5.5 bar

Max working temperature: 122 F/50 C

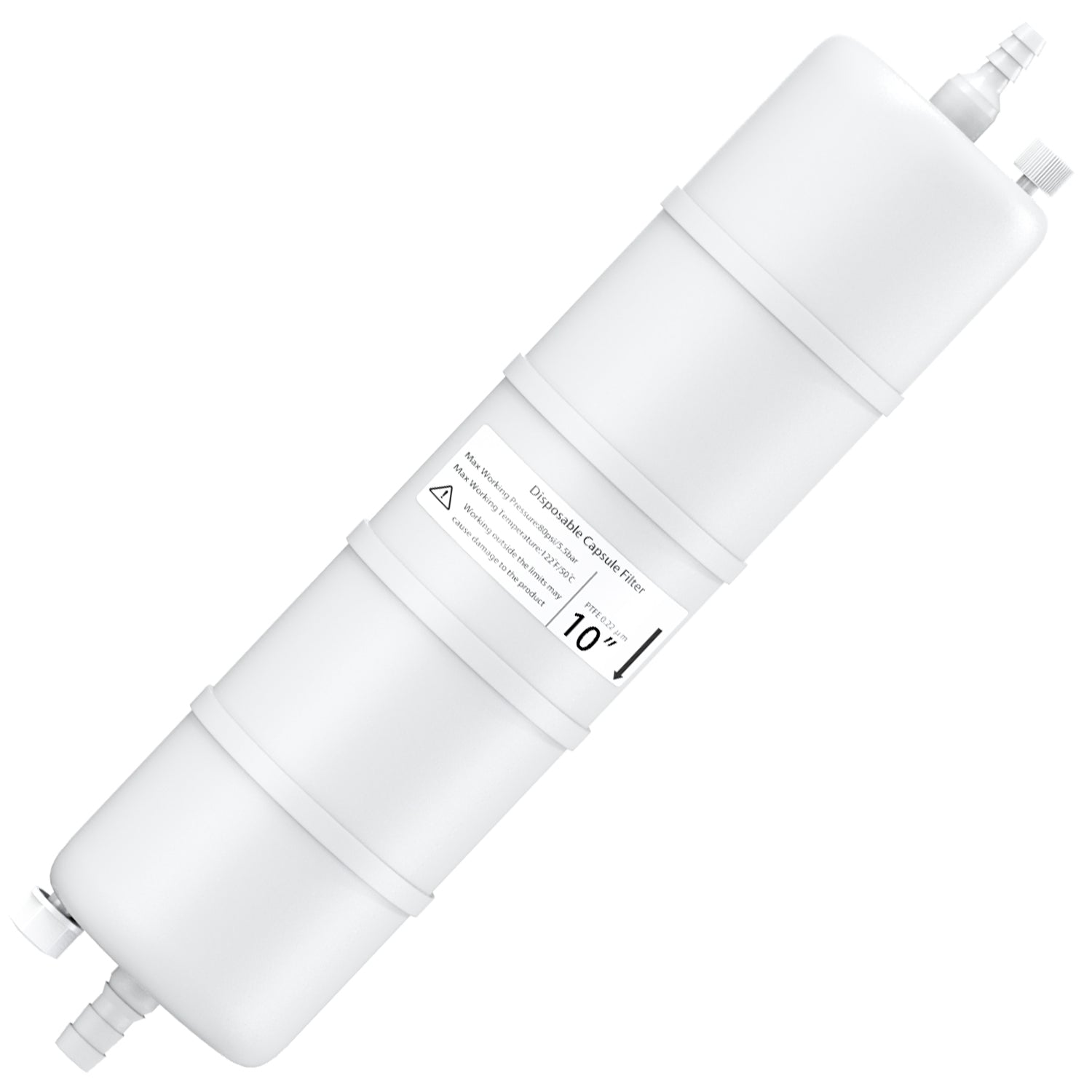

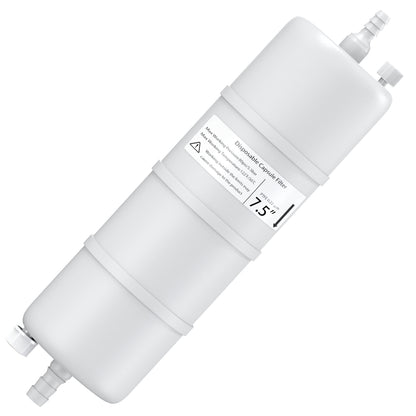

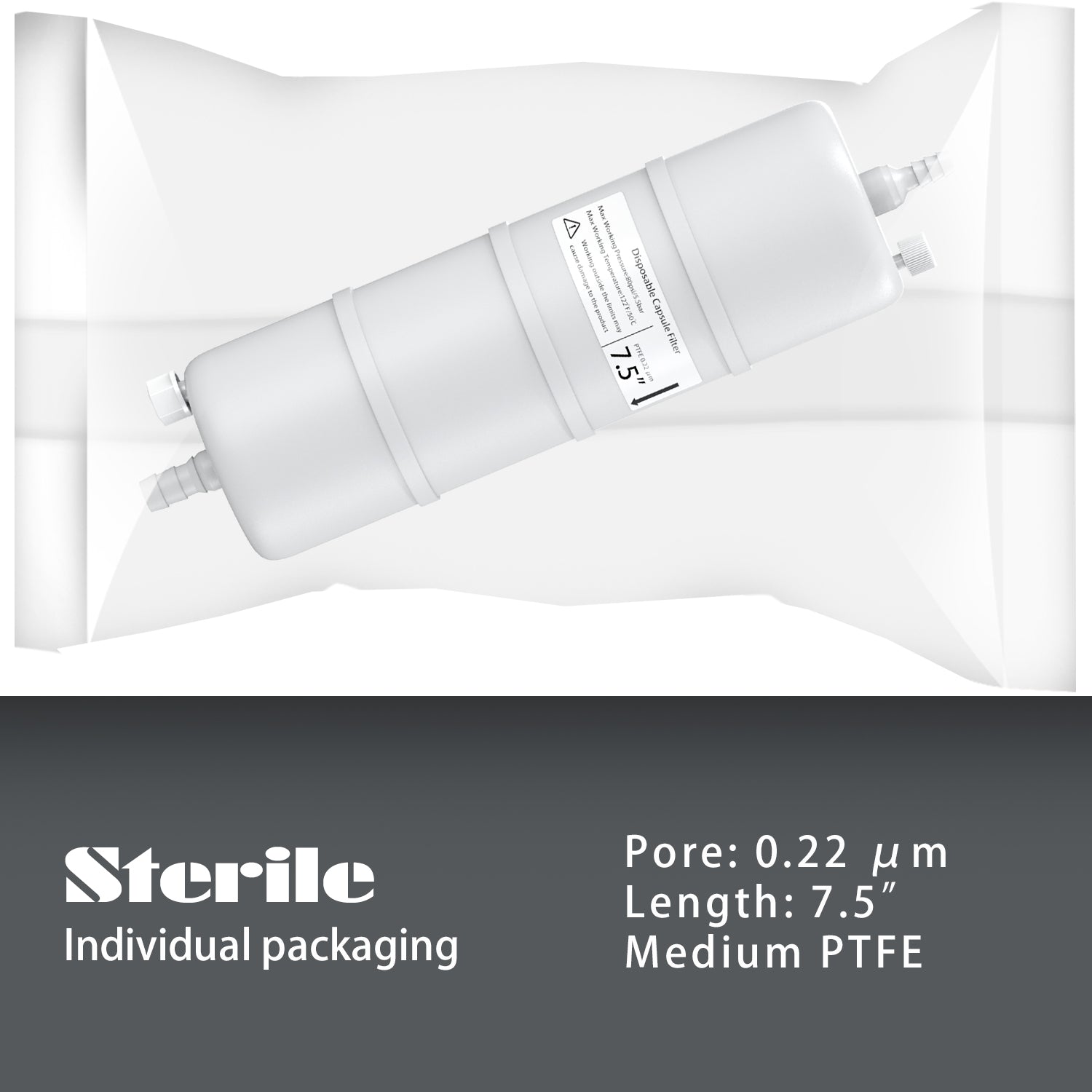

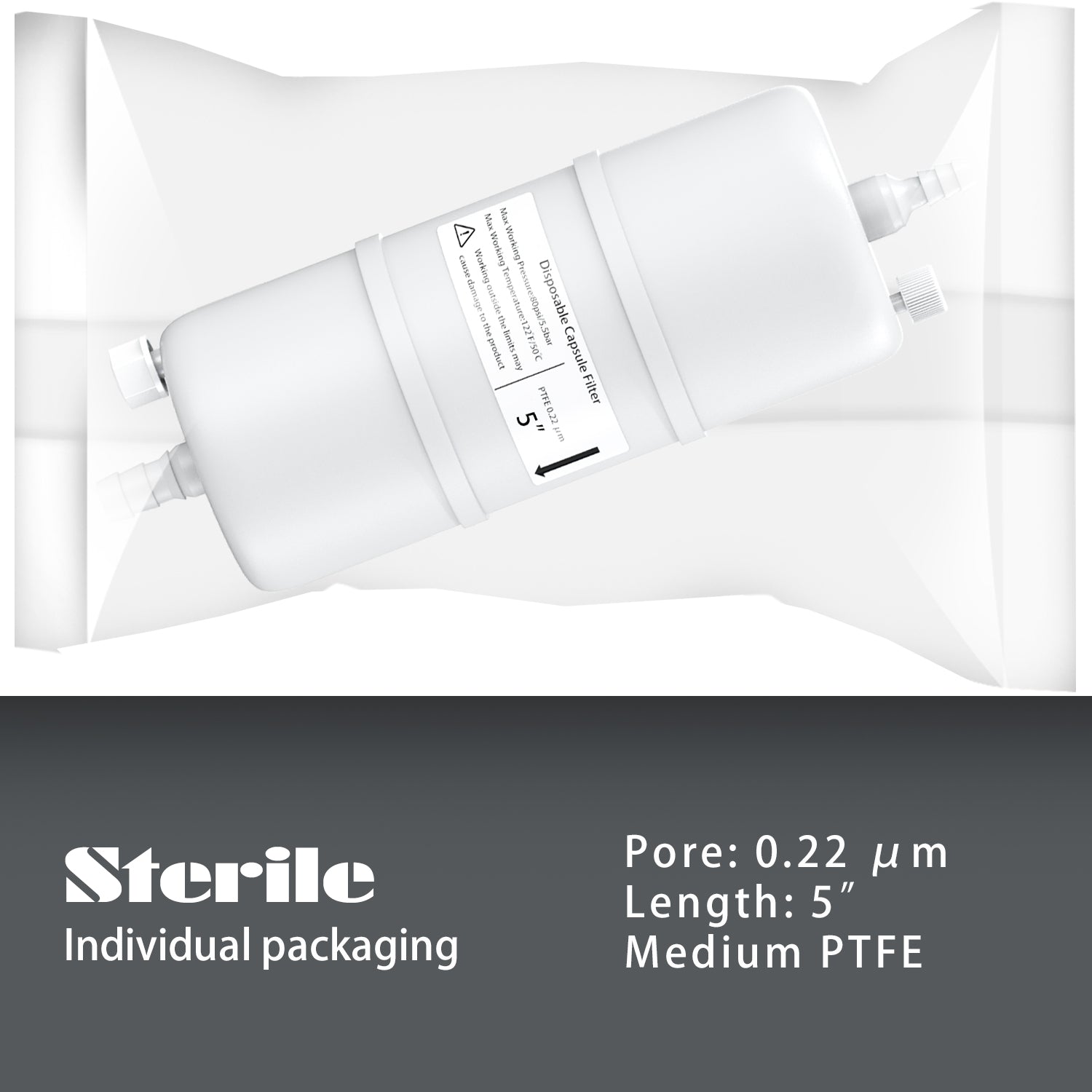

2.5" , 5" , 7.5" , 10"  are available,Also have different membranes and pore size

SB (Second Bar) capsules filter feature sturdy polyproplyene (PP）housings no glues or adhesives to contaminate filtrate. PTFE membrane is ideal for venting, in-line filtration, and isolation (gas pass, liquids, and aerosol stopped) . Autoclavable hose barb inlet and outlet capsules filter have a relatively large effective area for adequate filtration. Can carry out sufficient filtration

PES

PES Capsule Filters with Hose Barb for 1/4" to 3/8" Tube,Sterile Hydrophilic Filling Bell Filter Pore Size 0.22um Length 2.5" Individual Packaging,1/pk

Pore Size (um):0.22

Effective Filter Area (cm²): 2.5"---1000 cm² , 5"---2000 cm²，7.5"---3000 cm² , 10"---4000 cm²

Connections:With hose barb for 1/4" to 3/8" inlet and outlet tube

Membrane Material: PES membrane is inherently hydrophilic, has low extractables,flow rates, and exhibits low protein binding

Applications:buffers, clean air and gas equipment, general fine filtration, inks and pigments, solvents,etc

Max working pressure: 80 psi/5.5 bar

Max working temperature: 122 F/50 C

2.5" , 5" , 7.5" , 10"  are available,Also have different membranes and pore size

Polyethersulfone (PES) capsule filter device is disposable, dual layer, sterile, with a 0.22 µm pore size and hose barb fittings. It provides efficient filtration for critical aqueous solutions.
