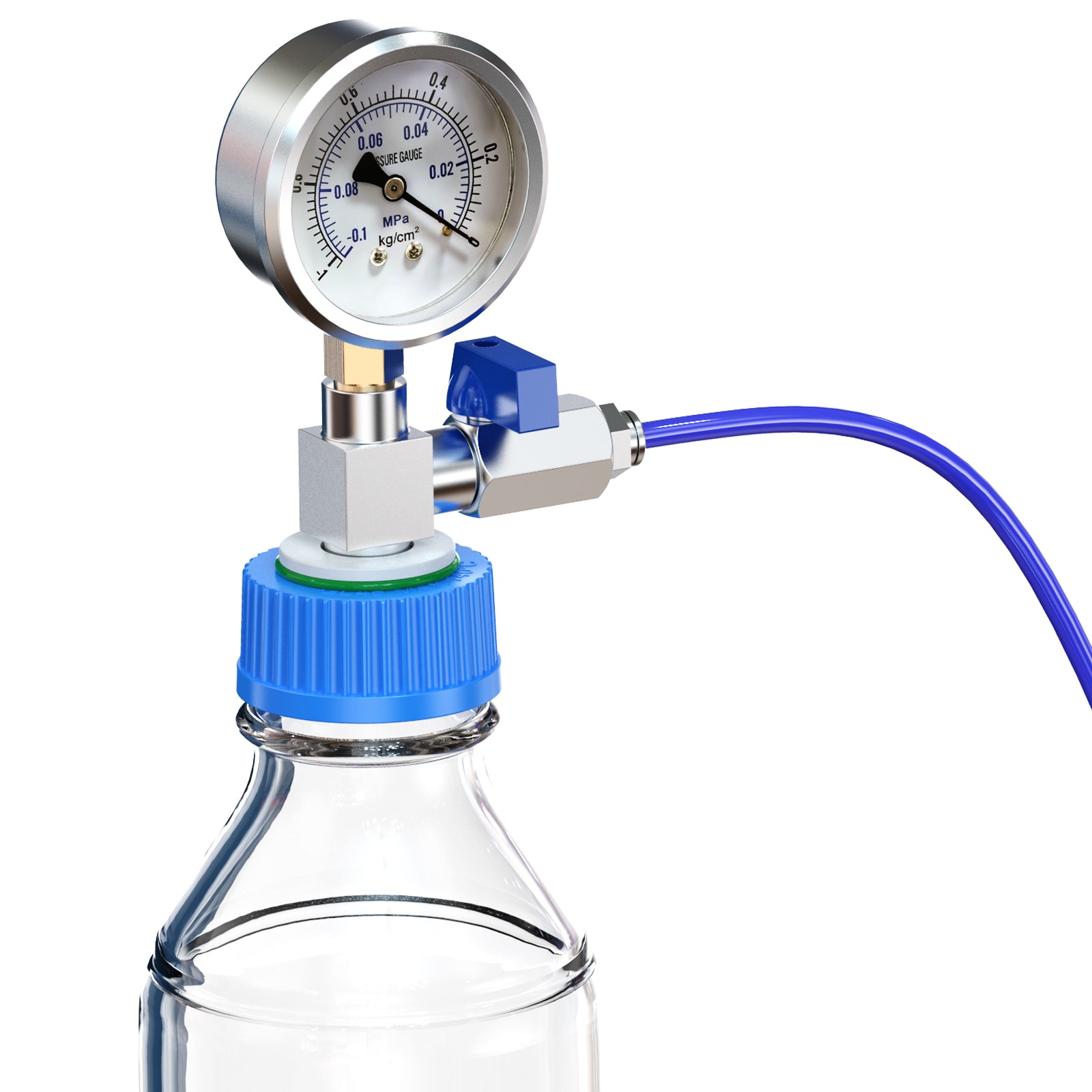

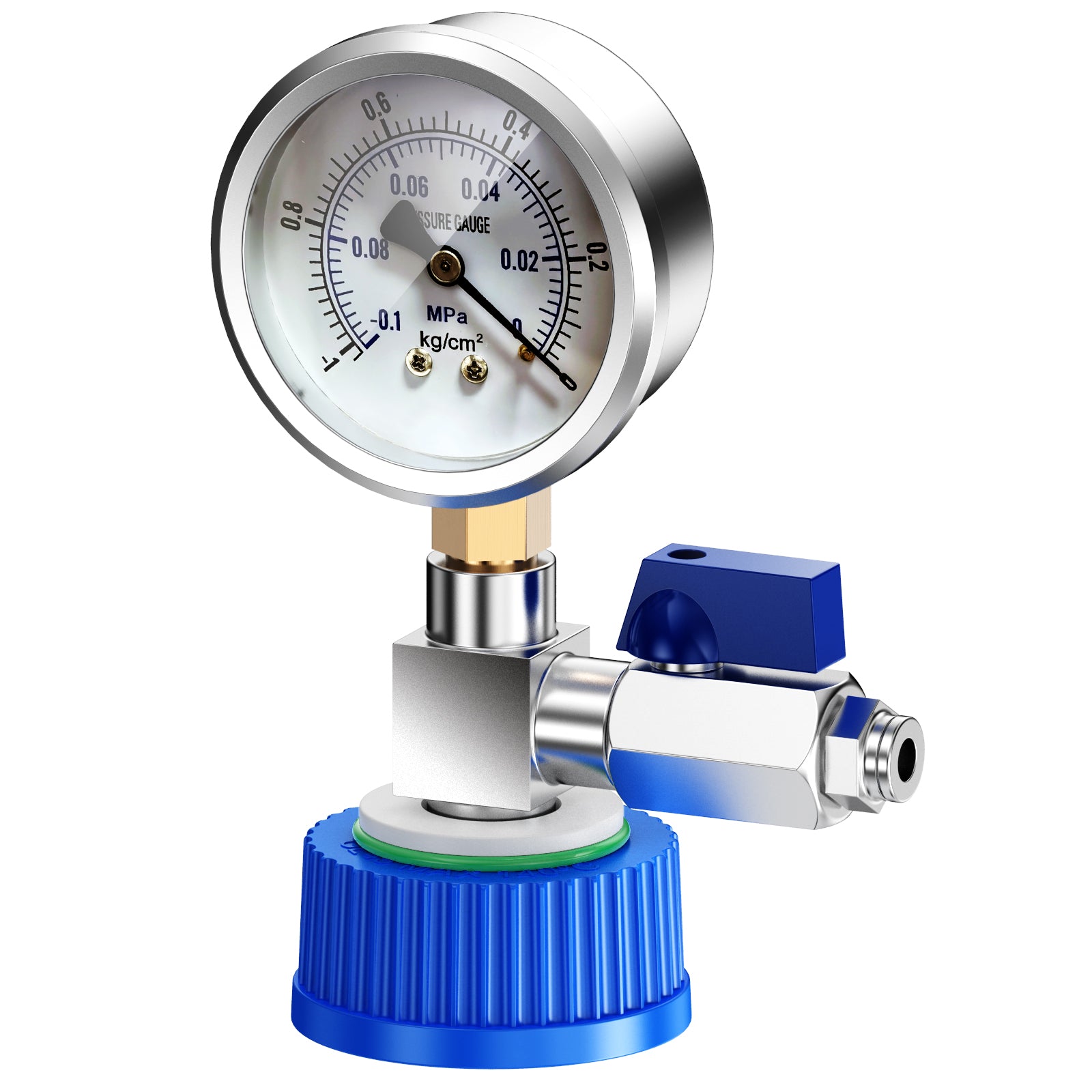

GL45 Screw Cap with Pressure Gauge, Quick Connect Air Hose Fitting and Adjustable Switch ,Blue Thread GL45 Bottle Cap for Monitor Pressure( -0.1-0MPa/-1-0KG)
GL45 Screw Cap with Pressure Gauge, Quick Connect Air Hose Fitting and Adjustable Switch ,Blue Thread GL45 Bottle Cap for Monitor Pressure( -0.1-0MPa/-1-0KG)
Couldn't load pickup availability
GL45 thread design:With GL45 thread design, which can be perfectly matched with various GL45 bottle tops to ensure the sealing and stability.
High quality material:The pressure gauge made of high quality 304 stainless steel material , thick inner wall. It has good corrosion and high temperature resistance and can be used for a long time without damage.

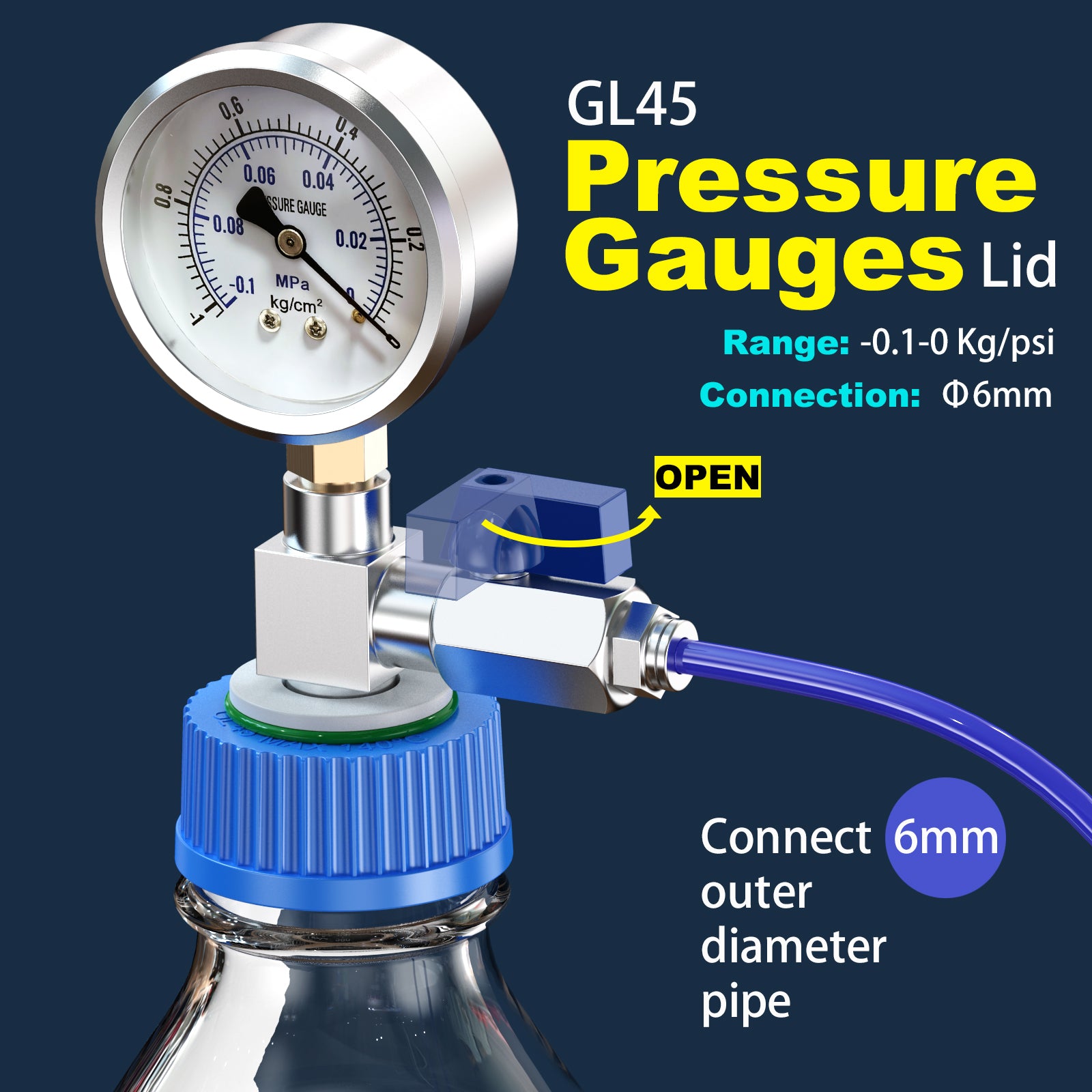

With pressure gauge:The GL45 thread cap with graduated pressure gauge, it will easier to read and control the pressure inside the bottle.It has 2 types( -0.1-0MPa/-1-0KG) of scales to meet your needs for different scales.
With quick connect: It can be easy to connect to 6mm air hose to input or extract gases .
Adjustable switch: There is an adjustable switch to flexibly control the pressure inside the bottle according to the need, which is convenient for experimental operation and result control.
Pressure gauge diameter: 60mm
Pressure gauge Color: body silver white, joints metal color
Pressure gauge thread: 1/4PT
Pressure gauge scale 1: -0.1-0MPa
Pressure gauge scale 2: -1-0KG
Pressure gauge Measuring range: 0-5KG 6KG 10KG 15KG 16KG 25KG Vacuum-76-0
Pressure gauge Accuracy grade: 2.5 Grade
Quick connect material: 304 Stainless Steel
Ambient conditions:-40~70C, relative humidity not more than 85%.
Temperature effect: use temperature deviation 20 earth 5C, not more than 0.4%/10C
The GL45 threaded cap is a reliable choice for both industrial and laboratory environments. Whether you need to monitor the pressure of gases, this product will meet your needs.
